Piedmont clay changes the pipe size
Forsyth County's driveway culvert work looks like standard Piedmont grading until you account for the soil. The heavy red clay underlying most of this county — the same material that keeps garden beds soggy and roadside shoulders muddy for days after rain — sheds water rather than absorbing it. On a sandy site, a 12-inch culvert handles modest residential drainage without complaint; on a red-clay lot in Winston-Salem, that same pipe can be overwhelmed by sheet flow off a modest uphill yard before a summer storm is halfway over. Pipe diameter is not a detail you negotiate down to save money here. It is the sizing decision that determines whether the crossing holds or becomes a washout.
Age compounds the clay problem in the Triad's established neighborhoods. The corridors along Peters Creek Parkway, the residential streets draining toward Salem Lake, and older subdivisions across western Forsyth County were developed when corrugated galvanized metal pipe was the standard. That pipe has a finite service life, and clay soils that stay wet between rain events accelerate the corrosion timeline. Many calls that start as "I need a new culvert" turn out to be replacement jobs once the existing pipe is inspected — and replacement is a different scope with different cost drivers. If you already suspect a failed crossing, the diagnostic questions are on the clogged or collapsed culvert page before you call for bids.
What a culvert installation involves, from grade to grade
A residential driveway culvert installation in the Triad typically runs one to two days for new work, slightly longer when the job involves removing and disposing of failed existing pipe:
- Site read and flow-line layout. The installer grades the existing swale or ditch, identifies the flow line, and determines where headwalls or flared-end sections need to land. On clay soils this step matters more than on well-draining sites — approach grade and outlet elevation control whether the pipe drains fully between storms or stays partly charged and silts faster.

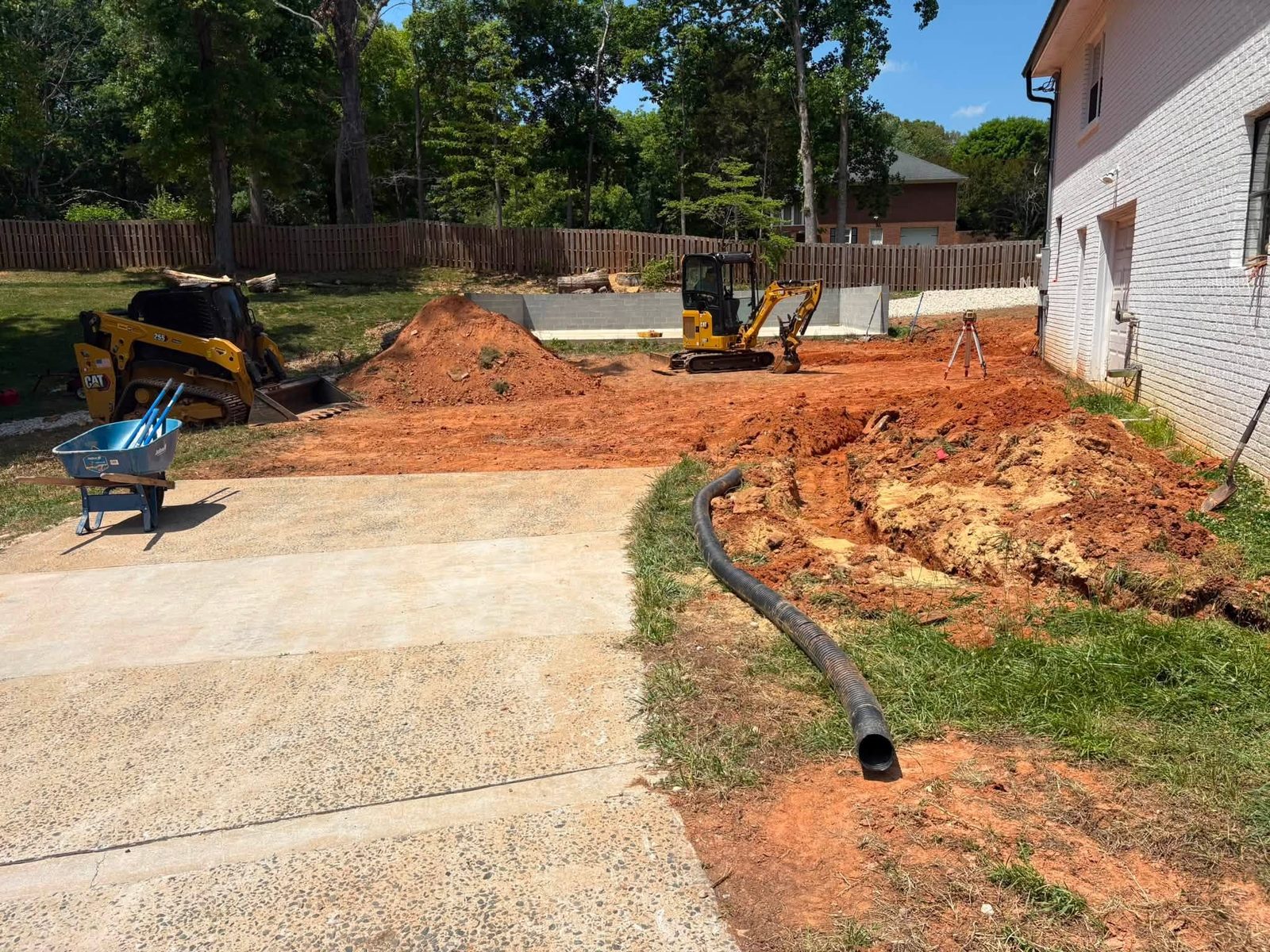

- Excavation to bedding depth. The trench is dug to accommodate proper pipe bedding — a gravel layer beneath the barrel for drainage support. Skipping bedding on clay is how you get a pipe that settles within a few seasons, forms low spots, and accelerates sediment buildup inside the barrel.
- Pipe placement and headwall work. High-density polyethylene corrugated pipe handles most residential crossings in Forsyth County. Heavier driveways, shared access lanes, or NCDOT right-of-way crossings may call for concrete pipe, which meets the load ratings and inlet standards those situations require.
- Backfill, compaction, and surface restoration. The driveway surface is rebuilt over the crossing. On a gravel driveway, the aggregate over the pipe needs sufficient depth so a loaded vehicle does not flex the barrel; on asphalt or concrete, the patching specification matters for long-term performance.
- Slope protection and erosion control. Disturbed clay soil adjacent to a drainage ditch erodes fast. NC DEQ's erosion and sediment control program sets minimum stabilization standards, and Forsyth County enforces its own stormwater requirements on top of the state baseline — exposed clay within a few feet of a ditch is not a compliant finish.
What it costs and what moves the number
Culvert installation pricing in Forsyth County moves with three variables: pipe diameter, run length, and whether the job requires removal of failed existing material. The county-level cost page breaks these down with more granularity; the table below covers the scope bands that matter most for residential driveways in the Triad.
| Scope | Typical Installed Range |
|---|---|
| Standard residential crossing, 12"–15" HDPE, 20–25 ft | $800 – $1,800 |
| Larger diameter (18"–24") or extended run, HDPE | $1,800 – $3,500 |
| Concrete pipe or heavy-use shared driveway | $2,500 – $5,500 |
| Replacement with removal, debris clearing, and clay-soil stabilization | $3,000 – $8,000 |
Two local factors push jobs toward the upper end. First, Forsyth County clay stays saturated well after a storm; if an installer hits soft, unstable subgrade at pipe depth, a gravel stabilization course adds material and labor that was not visible in the initial quote. Second, the county has recorded 22 federal disaster declarations over 1977-2026, and the contracting seasons following significant weather events are precisely when marginal or undersized culverts announce themselves as failures — scheduling in those windows sometimes means working in saturated conditions with limited equipment access, and that cost gets passed along.
Permits, drainage rules, and what the county actually requires
Most residential driveway culvert work in Forsyth County does not require a traditional building permit, but it triggers several other regulatory touchpoints that homeowners miss until after work is underway:
- State erosion and sediment control. NC DEQ requires a formal erosion control plan when a project disturbs one or more acres; smaller disturbances fall under county-level oversight. Below those thresholds, leaving exposed clay adjacent to a drainage ditch without seeding or matting still runs afoul of stormwater rules that apply to discharges from active construction sites.
- NPDES stormwater permitting. Projects disturbing an acre or more that discharge to state waters fall under the EPA's NPDES Construction General Permit program, administered in North Carolina through DEQ. A culvert installation on a large rural lot or a commercial access drive can cross that acre threshold faster than owners expect once staging area and haul routes are counted in.
- NCDOT right-of-way permit. If the culvert crosses the right-of-way of a state-maintained road — common throughout Forsyth County's residential street network — the work requires a driveway encroachment permit from NCDOT. Pipe size, headwall design, and cover depth must meet NCDOT standards to maintain drainage continuity across the right-of-way.
- County floodplain review. Forsyth County administers its floodplain management program under county ordinance; culvert work in or adjacent to a mapped flood zone requires review before work begins. Check your parcel against the FEMA Flood Map Service Center at msc.fema.gov as a first step — it is free and takes minutes.
Three questions that keep a culvert bid honest
"What diameter are you specifying, and how did you get there?" A contractor who names a pipe size without calculating the contributing drainage area and accounting for soil type is estimating from habit, not from the site. On Forsyth County clay, that estimate trends toward undersizing because the installer is pricing to win, not pricing for what the site will throw at the pipe in a heavy year. Ask for the sizing logic — even a rough drainage area sketch tells you whether the number was worked or assumed.
"What happens to the disturbed soil?" Excavation and backfill on a clay site leaves erodible material that will migrate directly into the ditch the culvert is meant to manage. A bid that does not include erosion control — seeding, matting, or stone placement at the disturbed area — is not a complete bid. It is transferring cleanup cost back to the homeowner or to a downstream neighbor. NC DEQ's sediment control program exists because that cost is measurable and real.
"Is this a new crossing or a replacement, and what did the inspection show?" These are different scopes with different risk profiles. A replacement job means removal of old material, which can surprise on cost if the original pipe is concrete, has partially collapsed, or has been buried under decades of grading and overfill. Get honest clarity on the condition of any existing pipe before a price is agreed to — the failure modes that drive replacement decisions are covered in detail on the clogged or collapsed culvert page.
